PUSH-LITE SWITCHES AND INDICATORS
PUSH-LITE SWITCHES AND INDICATORS
SWITCHES
?
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
?
277

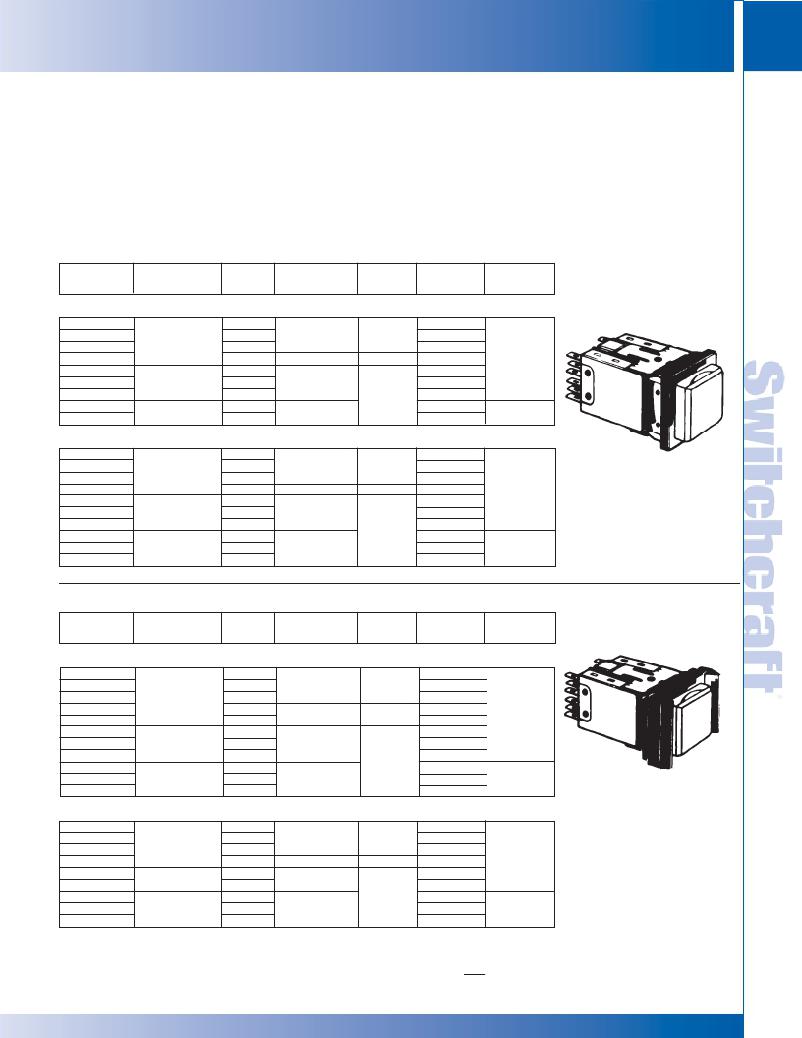

Completely enclosed, lighted pushbutton switches feature
long-life, highly-reliable, leaf-springs. Available with or
without barriers, full or split-face display. Mounts with
clamp-type bracket; no screws, washers or nuts needed. Can
be mounted in vertical or horizontal rows and in matrixes.
Accepts standard T 1-3/4 flange-base lamp (lamp not
furnished with switch) in either 6 V to 28 V rating. Specify
1 lamp for single lamp type or 2 lamps for twin-lamp type
MOMENTARY
when redundant or split-face lighting is required. Barriers
and colored filter snap-inserts optional (order separately).
Mounting hole (w/o barriers): 1" (25.4 mm) x .875" (22.23
mm); (w/barriers) 1.188" (30.16 mm) x .875" (22.23 mm).
Panel thickness: .125" (3.18 mm) maximum. Behind panel
depth 1.75" (44.45 mm) (minus panel thickness).
Housing/
AC Ratings (max.)
Part Number
Pushbutton Color
Switching
non-inductive
Contacts
CIrcuits
Terminals
SINGLE LAMP
PL103205
SPDT
1-C
PL106205
PL112205
Black/White
DPDT
4PDT
2 A, 125 V
Palladium
2-C
4-C
? PL126205
DPDT
8 A, 125V
Silver
2-C
Solder Lug
? PL403205
SPDT
1-C
? PL406205
? PL412205
Gray/White
DPDT
4PDT
2 A, 125V
Palladium
2-C
4-C
? PL706205
? PL712205
Black/White
DPDT
4PDT
2 A, 125 V
2-C
4-C
PC
TWIN LAMP
PL203205
SPDT
1-C
PL206205
PL212205
? PL226205
Black/White
DPDT
4PDT
DPDT
2 A, 125 V
8 A, 125V
Palladium
Silver
2-C
4-C
2-C
Solder Lug
WITHOUT BARRIERS
? PL503205
SPDT
1-C
? PL506205
? PL512205
? PL803205
Gray/White
DPDT
4PDT
SPDT
2 A, 125V
Palladium
2-C
4-C
1-C
? PL806205
Black/White
DPDT
2 A, 125 V
2-C
PC
? PL812205
4PDT
4-C
PUSH-LOCK/PUSH-RELEASE
Housing/
AC Ratings (max.)
Part Number
Pushbutton Color
Switching
non-inductive
Contacts
Circuits
Terminals
SINGLE LAMP
PL103705
SPDT
1-C
PL106705
PL112705
Black/White
DPDT
4PDT
2 A, 125 V
Palladium
2-C
4-C
? PL123705
? PL126705
SPDT
DPDT
8 A, 125V
Silver
1-C
2-C
Solder Lug
? PL403705
SPDT
1-C
? PL406705
? PL412705
? PL703705
Gray/White
DPDT
4PDT
SPDT
2 A, 125V
Palladium
2-C
4-C
1-C
? PL706705
? PL712705
Black/White
DPDT
4PDT
2 A, 125 V
2-C
4-C
PC
WITH BARRIERS
TWIN LAMP
? PL203705
SPDT
1-C
PL206705
PL212705
? PL226705
? PL506705
? PL512705
? PL803705
? PL806705
Black/White
Gray/White
Black/White
DPDT
4PDT
DPDT
DPDT
4PDT
SPDT
DPDT
2 A, 125 V
8 A, 125V
2 A, 125V
2 A, 125 V
Palladium
Silver
Palladium
2-C
4-C
2-C
2-C
4-C
1-C
2-C
Solder Lug
PC
? PL812705
4PDT
4-C
? Special order only; contact Switchcraft for price and delivery.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
